MP600 SERIES
The MP600 Series are M8 and M12 cylindrical mechanical sensors.
The long life sensing mechanism is designed to accurately detect two positions with a high degree of repeatability.
|
|
• 1 Device – 2 switching points |
The MP600 series of mechanical position sensors detect one or two positions within a single, compact electromechanical component.
Two independent commutations can sense two previously defined positions to within a few microns of accuracy. The two positions can be set specifically for each application, between 0.5mm and 1.5mm and require no further calibration. Depending on cable selection, the operating temperature can go from -30°C up to 130°C. The cable can be supplied with a connector termination, typically M8 or M12.
Applications are in the automation, process control and OEM industries that require today two switches for position control. The MP600 series solves the time consuming adjustments required because of the hysteresis effect caused by the sensors or snap action switches currently used. Initially designed for compact detection of status and wear of industrial safety brakes, numerous other uses are envisaged, in particular in the field of industrial automation. They include accurate position referencing as well as upper and lower threshold detection in process control applications.
For ease of integration and enhanced functionality, custom housing shapes can be easily implemented.
|
Technical Characteristics |
| Options | ||
| Approvals |
UL 61058-1, File E314075 |
|
| Housing | Brass, nickel plated - cylindrical format | Stainless steel |
| Membrane | HNBR elastomer | |
| Mechanism Contacts | Slow action | |
| Contact material | Gold plated | |
| Degree of protection | IP50 or IP67 | |
| Class of protection | II | |
| Micro-switch | μ | |
| Actuator | Polymer Pin | |
|
Stainless steel Pin |
other metallic material |
|
| Ball | ||
| Telescopic | ||
| Contact distance NC-NO | 0.5 to 1.5mm | custom distance |
| Circuit | NC+NO, NC or NO | |
| Cable length | 0.5m, 1m, 2m and 5m | custom length |
| Connector | M8 - M12 available, -25°C to 85°C, PUR | |
| Cable material |
Cable and wire leads: Standard 0.14 mm2 / 26 AWG PVC -20°C to 105°C PUR -30°C to 80°C SI -30°C to 130°C |
other material |
| Power rating | 24VDC / 5 to 100 mA | |
| Repeatability | ± 5 µm | |
| Hysteresis | < 7 µm | |
|
Operating temperature range |
UL 61058 -30°C to +130°C depending on cable and connector |
-55°C |
| Life span |
10 Mio cycles |
|
| B10d | > 30 Mio, 24VDC 10mA | |
| Standards |
UL61058 50'000 cycles |
| Description |
The sensors are built with a NC and a NO contact. There is no pre-travel of the pin plunger to open the NC contact.
The NO closes after a customized length of travel between 0.5 mm to 1.5 mm.
|
Configurations Housing |
|
M8 Pin polymer - Pin metallic |
 |
 |
| M8 with Ball |  |
|
| M8 with Telescopic |  |
 |
|
M12 Pin polymer - Pin metallic |
 |
|
| M12 with Ball |  |
|
|
Configurations Actuator - Circuit |
|
Type L0X : Pin polymer L2X : Pin metallic |
|||||||
 |
Contact distance (mm) - Circuit |
Pre-travel (mm) | Over-travel min. (mm) | Fa max. (N) |
|||
|
L00 L20 |
0.5 mm NC+NO |
0 mm to open NC 0.5 mm to close NO |
1.5 mm after NO signal |
1.2 (N) to open NC 3 (N) to close NO |
|||
|
L01 L21 |
1 mm NC+NO |
0 mm to open NC 1 mm to close NO |
1 mm after NO signal |
1.2 (N) to open NC 3 (N) to close NO |
|||
|
L02 L22 |
1.5 mm NC+NO |
0 mm to open NC 1.5 mm to close NO |
0.5 mm after NO signal |
1.2 (N) to open NC 3 (N) to close NO |
|||
|
L03 L23 |
NC only |
0 mm to open NC |
2 mm |
1.2 (N) to open NC |
|||
|
L04 L24 |
0.5 mm NO only |
0.5 mm to close NO |
1.5 mm after NO signal |
3 (N) to close NO |
|||
|
L05 L25 |
1 mm NO only |
1 mm to close NO |
1 mm after NO signal |
3 (N) to close NO |
|||
|
L06 L26 |
1.5 mm NO only |
1.5 mm to close NO |
0.5 mm after NO signal |
3 (N) to close NO |
|||
|
Type L1X : Ball |
|||||||
 |
Contact distance (mm) - Circuit |
Pre-travel (mm) | Over-travel min. (mm) | Fa max. (N) |
|||
| L10 | 0.5 mm NC+NO |
0 mm to open NC 0.5 mm to close NO |
1.2 mm after NO signal |
1.2 (N) to open NC 3 (N) to close NO |
|||
| L11 | 1 mm NC+NO |
0 mm to open NC 1 mm to close NO |
0.7 mm after NO signal |
1.2 (N) to open NC 3 (N) to close NO |
|||
| L12 | 1.5 mm NC+NO |
0 mm to open NC 1.5 mm to close NO |
0.2 mm after NO signal |
1.2 (N) to open NC 3 (N) to close NO |
|||
| L13 | NC only |
0 mm to open NC |
1.7 mm |
1.2 (N) to open NC |
|||
| L14 | 0.5 mm NO only |
0.5 mm to close NO |
1.2 mm after NO signal |
3 (N) to close NO |
|||
| L15 | 1 mm NO only |
1 mm to close NO |
0.7 mm after NO signal |
3 (N) to close NO |
|||
| L16 | 1.5 mm NO only |
1.5 mm to close NO |
0.2 mm after NO signal |
3 (N) to close NO |
|||
|
Type L5X : Telescopic not available with M12 housing |
|||||||
 |
Contact distance (mm) - Circuit |
Pre-travel (mm) | Over-travel min. (mm) | Fa max. (N) |
|||
| L50 | 0.5 mm NC+NO |
0 mm to open NC 0.5 mm to close NO |
6 mm after NO signal |
1.2 (N) to open NC 3 (N) to close NO |
|||
| L51 | 1 mm NC+NO |
0 mm to open NC 1 mm to close NO |
5.5 mm after NO signal |
1.2 (N) to open NC 3 (N) to close NO |
|||
| L52 | 1.5 mm NC+NO |
0 mm to open NC 1.5 mm to close NO |
5 mm after NO signal |
1.2 (N) to open NC 3 (N) to close NO |
|||
| L53 | NC only |
0 mm to open NC |
6.5 mm |
1.2 (N) to open NC |
|||
| L54 | 0.5 mm NO only |
0.5 mm to close NO |
6 mm after NO signal |
3 (N) to close NO |
|||
| L55 | 1 mm NO only |
1 mm to close NO |
5.5 mm after NO signal |
3 (N) to close NO |
|||
| L56 | 1.5 mm NO only |
1.5 mm to close NO |
5 mm after NO signal |
3 (N) to close NO |
|||
| Termination |
| With Cable | With Circular connector 4 pins | ||
|
COM NC NO |
Brown / Brown Black / White Blue / Green |
1 2 4 |
 |
| Standard Configuration - Ordering information |
| MP6 | 0 | 1 | - L | 0 | 0 | -C | 1 | 0 |
PVC | __ | |
|
Housing 0 : M8 Metal IP67 2 : M12 Metal IP67 5 : M8 Metal IP50 7 : M12 Metal IP50 |
|||||||||||
|
Contact 1 : Gold plated contact |
|||||||||||
|
Actuator 0 : Pin polymer 1 : Ball 2 : Pin metallic 5 : Telescopic - not available with M12 housing |
|||||||||||
|
Contact Distance - Circuit 0 : 0.5mm NC+NO 1 : 1.0mm NC+NO 2 : 1.5mm NC+NO 3 : NC only 4 : NO only 0.5mm 5 : NO only 1.0mm 6 : NO only 1.5mm |
|||||||||||
|
Cable length 0 : 0.5m 1 : 1m 2 : 2m 5 : 5m |
|||||||||||
|
Connector 0 : Without 1 : Circular M12 - 4 pin PUR Cable 2 : Circular M8 - 4 pin PUR Cable, not available with telescopic Actuator |
|
||||||||||
|
Termination material PVC : Polyvinyl Chloride PUR : Polyurethane SI : Silicone, not available with circular connector |
|||||||||||
|
Termination outlet FL : Free wires |
MICROSWITCH SERIE MP300
A miniature IP67 microswitch with a service range up to 170°C and stainless steel levers, for a wide range of applications, including those in the most hostile industrial environments. The MP300 Series features unparalleled flexibility in terms of levers and standard telescopic plungers. Together with the option of manufacturing customized actuators, the applications are virtually unlimited.
|
Descriptions |
| Approvals |
EN/UL 61058-1, UL file E314075 Upon request: CSA C22.2, ATEX II3d/Ex t IIIB 84°C Dc |
| Housing | Glass fiber reinforced |
| Plunger | PPS |
| Membrane | Fluorsilicone elastomer, other material upon request |
| Mechanism Contacts | Change-over, Snap-action with blade in Beryllium Copper |
| Contact material | Fine Silver, Gold contact upon request |
| Termination |
Cable and Leads: Standard 0.75 mm2 / 19 AWG PVC -20°C to 105°C - EN/UL Certification PUR -40°C to 90°C - EN/UL Certification SI -40°C to 130°C - EN Certification PTFE -40° to 170°C - EN Certification Other material upon request |
| Cable outlet |
Standard side of button Other side upon request |
| Actuator | Overall dimensions in stainless steel |
| Degree of protection |
IP67 |
| Class of protection | II |
| Micro-switch | μ |
| Contact-gap | 0.80 mm |
| Dimensions |
DIN 41 635, form A 31 x 24 x 10.3 mm |
| Power rating Resistive Load |
250VAC / 6A |
| Operating range force | 1.3 to 4.0 N, depending actuator |
|
Operating temperature range (cable choice may lower temperature) |
EN 61058 -40°C to +130°C depending cable (+170°C upon request) UL 61058 -40°C to +130°C (upon request) EN 60079 (ATEX) -15°C to +80°C (upon request) CSA - C22.2 T amb. (upon request) |
| Mechanical life | 50 x 106 |
| Standards |
EN61058 50'000 cycles UL61058 50'000 cycles CSA C22.2 6'000 cycles |
| MP310 | MP320 |
 |
 |
|
Actuator |
| Type 0 : Basic switch | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
4.0 1.0 15.3 ± 0.3 14.7 ± 0.2 0.20 0.05 |
| Type 1MS27 : Telescopic plunger | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
4.0 1.0 27.7 ± 0.6 27.2 ± 0.3 2.0 0.1 |
| Type 1M : Telescopique plunger, thread | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
4.0 1.0 50.3 ± 0.6 49.7 ± 0.3 5.0 0.1 |
| Type 1ML : Telescopic with roller, thread - upon request transversal roller | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
4.0 1.0 49.8 ± 0.6 49.3 ± 0.3 5.0 0.1 |
| Type 3MA : Stiff lever - reverse action - Upon request lever outside of switch | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
2.5 1.0 26.0 ± 1.0 24.2 ± 0.6 2.5 0.8 |
| Type 5MAL : Stiff roller-lever - reverse action - Upon request lever outside of switch, Stainless steel roller | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
3.0 1.0 35.6 ± 1.0 34.0 ± 0.6 2.5 0.8 |
| Type 6MAL : Stiff tip-action roller - reverse action - Upon request lever outside of switch, Stainless steel roller | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
3.0 1.0 41.5 ± 1.0 39.8 ± 0.6 2.5 0.8 |
| Type 7M : Stiff lever - direct action | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
1.3 0.3 19.0 ± 1.0 16.5 ± 0.8 0.5 0.8 |
| Type 8ML25 : Stiff roller - lever - direct action - Upon request Stainless steel roller | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
4.0 1.0 26.5 ± 1.0 25.7 ± 0.3 0.2 0.1 |
| Standard wiring diagram |
| Code Actuator | Diagram | Color | |
| Direct action |
0 1MS27 1M 1ML 7M 8ML25 |
 |
1 : Brown 2 : Black 4 : Blue |
| Reverse action |
3M 5MAL 6MAL |
 |
| Ordering information |
| MP3 | 2 | 0 | - | 8ML25 | / | 375 | / | 100 | PVC | |
|
Housing 1: without lever 2: with lever |
||||||||||
|
Contact material 0: Silver contact 1: Gold contact |
||||||||||
|
Actuator 0: Basic switch - pin plunger 1MS27 : Plunger 1M : Plunger, thread 1ML : Roller plunger, thread 3MA : Lever - reverse action 5MAL : Roller lever - reverse action 6MAL : Stiff roller lever - reverse action 7M : Direct action lever 8ML25 : Direct action roller lever |
||||||||||
|
375 : 3 Wires section 0.75 mm2 / 19 AWG |
||||||||||
|
Length of cable 200 : Length 2m 400 : Length 4m |
||||||||||
|
Material of cable PVC : Polyvinyl Chloride PUR : Polyurethane SI : Silicone |
MICROSWITCH SERIE MP200
The MP200 is a IP67 sealed snap action microswitch with potted cable for demanding industrial applications. An IP68 protection with strengthened cable outlet and increased actuating force for operation in liquids is also available. All actuators are in stainless steel for maximum protection in hazardous industrial environments.
The switch can be supplied with 2 different electrical circuits. The MP210 Version is a single pole double throw microswitch for a power rating of 15A / 250VAC. In its MP220 version a single pole double break circuit can double-break a power line of up to 10A / 250VAC.
Operational Temperature rating under EN61058 is -40°C to +130°C, but temperature rating as well as the power rating may change based on the selected potted cable material and cross section.
|
Descriptions |
MP210 |
MP220 |
|
|
Contact type Za |
|
| Approval |
EN 61058-1 UL 61058-1 File E314075 |
EN 61058-1 UL61058-1 File E314075 |
| Standard |
EN 61058 50'000 cycles UL 61058 50'000 cycles |
EN 61058 50'000 cycles UL 61058 50'000 cycles |
| Power rating |
250VAC / 15A - Wires 1.50 mm2 (PVC and SI Cable) |
250VAC / 10A - Wires 1.00 mm2 |
| Housing | Glass fiber reinforced (PBT) | |
| Plunger | PC | |
| Membrane | Fluorsilicone - Upon request other material | |
| Mechanism | Snap-action with blade in Beryllium Copper | |
| Contact material | Fine Silver, Gold contact upon request | |
| Termination cable |
PVC -20°C to 105°C - EN/UL approval PUR -40°C to 90°C - MP210 EN/UL approval - MP220 EN approval SI -40°C to 130°C - EN approval |
|
| Actuator | All parts in stainless steel | |
| Degree of protection |
IP67 - Upon request IP68 |
|
| Class of protection | II | |
| Micro-switch | μ | |
| Contac-gap | 0.80 mm | |

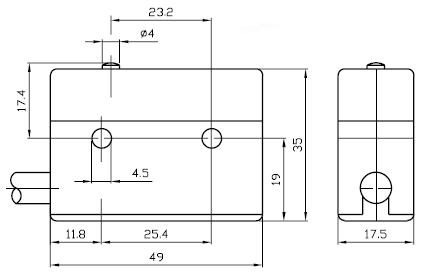

| Dimensions |
DIN 41 635, E - form 49 x 35 x 17.5 mm |
|
| Operating range force | 0.2 to 6.0 N, depending on actuator | |
|
Operating temperature housing (cable choice may lower temperature) |
EN 61058 -40°C to +130°C UL 61058 -40°C to +125°C |
|
| Mechanical life | 50 x 106 | |
|
Actuator |
| Type 0 : Basic switch | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
6.0 2.5 17.4 ± 0.5 16.5 ± 0.3 0.25 0.10 |
| Type 1S29 : Plunger | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
6.0 2.5 29.3 ± 0.6 28.4 ± 0.3 2.0 0.12 |
| Type 1A : Plunger, thread short | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
6.0 2.5 39.1 ± 0.6 38.4 ± 0.3 5.0 0.12 |
| Type 1A58 : Plunger, thread | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
6.0 2.5 58.0 ± 1.0 57.2 ± 0.3 10.0 0.12 |
| Type 1BL : Roller plunger, thread - Upon request steel roller , transversal roller | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
6.0 2.5 51.4 ± 0.6 50.7 ± 0.3 5.0 0.12 |
| Type 3A : Lever - reverse action - Upon request lever other side | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
4.5 1.2 31.1 ± 1.5 29.0 ± 1.5 3.5 0.80 |
| Type 5AL : Roller lever - reverse action - Upon request lever other side, steel roller, transversal roller | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
4.5 1.2 35.5 ± 1.5 32.5 ± 1.5 3.5 0.90 |
| Type 6AL : Stiff roller lever - reverse action - Upon request lever other side, steel roller, transversal roller | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
4.5 1.2 41.6 ± 1.5 38.6 ± 1.5 3.5 0.90 |
| Type 7A40 : Direct action adjustable lever | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
0.6 0.2 - Ajustable - 1.20 |
| Type 7AC : Direct action adjustable lever | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
0.2 0.05 - Ajustable - 5.00 |
| Type 8AL40 : Direct action adjustable roller lever | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) Operating Position Pa (mm) Over-travel sr min. (mm) Differential movement sd max. (mm) |
0.6 0.2 - Ajustable - 1.20 |
| Standard wiring diagram |
| Code Actuator | Diagram | Color | ||
| Direct action |
0 1S29 1A 1A58 1BL 7A40 7AC 8AL40 |
MP210 | |
PVC : 1 / Brown - 2 / Black - 4 / Blue SI : 1 / Red - 2 / White - 4 / Blue PUR : 1 / Red - 2 / White - 4 / Blue |
| MP220 |  |
PVC : 11/12 - Brown ; 13/14 - Blue SI : 11/12 - White ; 13/14 - Blue PUR : 11/12 - Brown ; 13/14 - Blue |
||
| Reverse action |
3A 5AL 6AL |
MP210 | |
PVC : 1 / Brown - 2 / Black - 4 / Blue SI : 1 / Red - 2 / White - 4 / Blue PUR : 1 / Red - 2 / White - 4 / Blue |
| MP220 |  |
PVC / PVCU : 11/12 - Brown ; 13/14 - Blue SI : 11/12 - White ; 13/14 - Blue PUR : 11/12 - Brown ; 13/14 - Blue |
||
| Ordering information |
| MP2 | 1 | 0 | - | 5AL | / | 3 | 100 | / | 200 | SI | |
|
Circuit 1 : Changeover 2 : Double break type Za |
|||||||||||
|
Contact material 0 : Silver contact 1 : Gold contact |
|||||||||||
|
Actuator 0: Basic switch - pin plunger 1S29 : Plunger 1A : Plunger, thread short 1A58 : Plunger, thread 1BL : Roller plunger, thread 3A : Lever - reverse action 5AL : Roller lever - reverse action 6AL : Stiff roller lever - reverse action 7A40 : Direct action adjustable lever 7AC : Direct action adjustable lever 8AL40 : Direct action adjustable roller lever |
|||||||||||
|
Number of conducteur 3 : MP210 Changeover 4 : MP220 Double break |
|||||||||||
|
Wires Section 100 : 1.00mm2 - 400VAC / 10A (MP210); 250VAC / 10A (MP220) 150 : 1.50mm2 - 250VAC / 15A (MP210) |
|||||||||||
|
Length of cable 200 : Length 2m 400 : Length 4m |
|||||||||||
|
Cable material PVC : -20°C to +105°C SI : Silicone -40°c to +130°C PUR : Polyurethane -40°C to +90°C |
MICROSWITCH SERIE MP500
A Subminiature microswitch of standardized small dimensions. The MP500 series stands out from other products on the market in terms of its mechanical service life and the choice of materials, wich enable it to resist temperatures up to 105 °C (221°F).
|
Descriptions |
| Approvals |
EN 61058-1 UL 61058-1 |
|
| Housing | Glass fiber reinforced | |
| Plunger | PES | |
| Membrane | Fluorsilicone elastomer | |
| Mechanism Contacts | Change-over, Snap action coil spring mechanism with stainless steel spring | |
| Contact material | Fine Silver, Gold contact upon request | |
| Termination |
Cable PVC -20°C to 105°C (-4°F to 221°F) Solder terminal -40°C to 105°C (-40°F to 221°F) PCB -40°C to 105°C (-40°F to 221°F) |
|
| Actuator | Overall dimensions in stainless steel, flat lever , roller, simulated roller | |
| Degree of protection |
IP67 |
|
| Class of protection |
I 250V II / III 24V |
|
| Pollution degree | 3 | |
| Proof tracking index PTI | 250V | |
| Glow-wire temp. | 850°C | |
| Micro-disconnection | μ | |
| Contact-gap | 0.40 mm | |
| Dimensions |
DIN 41 635, form B 20 x 16 x 6.5 mm (0.7874 x 0.6299 x 0.2559 in) |
|
|
Power rating UL / EN 61058 (R: Resistive Load) |
5RA 250VAC 25'000 cycles 2RA 250VAC 50'000 cycles 0.1RA 24VDC 50'000 cycles |
|
| Operating range force | 1.0 to 2.5 N, depending actuator | |
| Operating temperature range | -40°C to 105°C (-40°F to 221°F) | |
| Mechanical life | 10 x 106 | |
| C000 : Solder terminals (mm) | |
 |
Flexible conductors to be used. With provisions for securing the conductor by mechanical means and providing circuit continuity by soldering. Soldering by hand with a soldering iron.
Remark : Avoid overheating as this may damage the switch. |
| C001 : PCB terminals (mm) | |
 |
|
| C100 : PVC cable overmould (mm) | |
 |
|
Actuator |
| Type L00 : Pin plunger - without lever | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) / (in) Operating Position Pa (mm) / (in) Over-travel sr min. (mm) / (in) Differential movement sd max. (mm) / (in) |
2.5 0.5 9.2 ± 0.2 / 0.3622 ± 0.0079 9.0 ± 0.2 / 0.3543 ± 0.0079 0.6 / 0.0236 0.05 / 0.0020 |
| Type L70 : Flat lever - position A | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) / (in) Operating Position Pa (mm) / (in) Over-travel sr min. (mm) / (in) Differential movement sd max. (mm) / (in) |
1.0 0.15 12.0 ± 0.4 / 0.4724 ± 0.0157 10.0 ± 0.4 / 0.3937 ± 0.0157 1.2 / 0.0472 0.40 / 0.0157 |
| Type L71 : Flat lever - position B | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) / (in) Operating Position Pa (mm) / (in) Over-travel sr min. (mm) / (in) Differential movement sd max. (mm) / (in) |
2.0 0.3 10.3 ± 0.4 / 0.4055 ± 0.0157 9.4 ± 0.4 / 0.3701 ± 0.0157 0.6 / 0.0236 0.30 / 0.0118 |
| Type L80 : Roller - position A | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) / (in) Operating Position Pa (mm) / (in) Over-travel sr min. (mm) / (in) Differential movement sd max. (mm) / (in) |
1.0 0.15 17.3 ± 0.4 / 0.6811 ± 0.0157 15.3 ± 0.4 / 0.6024 ± 0.0157 1.2 / 0.0472 0.40 / 0.0157 |
| Type L81 : Roller - position B | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) / (in) Operating Position Pa (mm) / (in) Over-travel sr min. (mm) / (in) Differential movement sd max. (mm) / (in) |
2.0 0.3 15.9 ± 0.4 / 0.6260 ± 0.0157 15.0 ± 0.4 / 0.5906 ± 0.0157 0.6 / 0.0236 0.30 / 0.0118 |
| Type L85 : Simulated roller - position A | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) / (in) Operating Position Pa (mm) / (in) Over-travel sr min. (mm) / (in) Differential movement sd max. (mm) / (in) |
1.0 0.15 15.0 ± 0.4 / 0.5906 ± 0.0157 13.0 ± 0.4 / 0.5118 ± 0.0157 1.2 / 0.0472 0.40 / 0.0157 |
| Type L86 : Simulated roller - position B | ||
 |
Actuating Force Fa max. (N) Release Force Fr min (N) Free Position Pr (mm) / (in) Operating Position Pa (mm) / (in) Over-travel sr min. (mm) / (in) Differential movement sd max. (mm) / (in) |
2.0 0.3 13.5 ± 0.4 / 0.5315 ± 0.0157 12.6 ± 0.4 / 0.4961 ± 0.0157 0.6 / 0.0236 0.30 / 0.0118 |
| Standard wiring diagram |
| Switching diagram | |||
|
Solder terminal PCB |
C000 C001 |
 |
|
| PVC cable | C10. / C20. |
1 - Black 2 - Grey 4 - Blue |
| Ordering information |
| MP5 | 0 | 0 | - | L70 | - | C100 | |
|
Housing 0 : IP67 with membrane 5 : IP40 without membrane |
|||||||
|
Contact material 0 : Silver contact 1 : Gold contact (Cable PVC, 3x0.25 mm2) |
|||||||
|
Actuator L00 : Basic switch - pin plunger L70 : Flat lever - A position L71 : Flat lever - B position L80 : Roller - A position L81 : Roller - B position L85 : Simulated Roller - A position L86 : Simulated Roller - B position |
|||||||
|
Terminals C000 : Solder C001 : PCB C100 : Cable PVC, 3x0.25 mm2, 250VAC 2A 0.5 (m) / 19.69 (in) C101 : Cable PVC, 3x0.25 mm2, 250VAC 2A 1 (m) / 39.37 (in) C102 : Cable PVC, 3x0.25 mm2, 250VAC 2A 2 (m) / 78.74 (in) C200 : Cable PVC, 3x0.50 mm2, 250VAC 5A 0.5 (m) / 19.69 (in) C201 : Cable PVC, 3x0.50 mm2, 250VAC 5A 1 (m) / 39.37 (in) C202 : Cable PVC, 3x0.50 mm2, 250VAC 5A 2 (m) / 78.74 (in) |
Limit switch MP800
The family MP800 of safety and limit switches with their metal or plastic housing are ideally suited to application where precise shutdown is required. For example when the positions of doors and access hatches are monitored.
They can be used in safety circuits as the NC contact is positively-opening in compliance with IEC 60 947-5-1.
|
Descriptions |
| MP800-MP810-MP850 | MP820-MP830-MP870 | ||
| Approval | IEC 947-5-1 | ||
| Housing | Thermoplastic | Metal | |
| Mechanism |
Forced break Slow action - Snap action |
Forced break Slow action - Snap action |
|
| Circuit | 1NO + 1NC / 2NC / 2NO+1NC / 1NO+2NC / 3NC | ||
| Termination | PG13.5 / 1/2" NPT / PG11 / M16 / M20 | ||
| Actuator | Variety of operation heads | ||
| Degree of protection | IP65 | IP66 | |
| Power rating |
AC-15 3A DC-13 0.27A |
||
| Thermal current | 10A | 10A | |
| Dimensions |
EN 50 047 30 mm / 50 mm EN 50 041 40 mm |
||
| Operating temperature range | -25°C to +70°C | ||
| Mechanical life | 30 x 106 | ||
| Datasheet | MP800.pdf | ||
