MP600 SERIES

1 Device – 2 switching points Very high precision mechanism M8 and M12 cylindrical housing Easy mounting and adjustment Extremely low hysteresis Operating temperatures -30°C to +130°C Degree of protection IP67

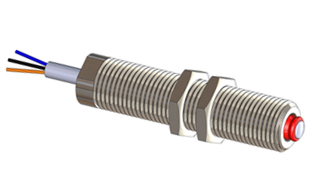

The MP600 series of mechanical position sensors detect one or two positions within a single, compact electromechanical component.

Two independent commutations can sense two previously defined positions to within a few microns of accuracy. The two positions can be set specifically for each application, between 0.5 and 1.5 mm and require no further calibration. Depending on cable selection, the operating temperature can go from -30°C up to +130°C. The cable can be supplied with a connector termination, typically M8 or M12.

Applications are in the automation, process control and OEM industries that require today two switches for position control. The MP600 series solves the time consuming adjustments required because of the hysteresis effect caused by the sensors or snap action switches currently used. Initially designed for compact detection of status and wear of industrial safety brakes, numerous other uses are envisaged, in particular in the field of industrial automation. They include accurate position referencing as well as upper and lower threshold detection in process control applications.

For ease of integration and enhanced functionality, custom housing shapes can be easily implemented.

On free position the contact NC is activated.

No pre-travel of the pin plunger to open the NC contact.
The NO contact closes after a standard travel of 0.5 mm, 1 mm or 1.5 mm.

Type L0X : Polymer pin L2X : Metallic pin
Sensor configuration

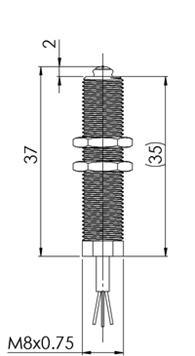

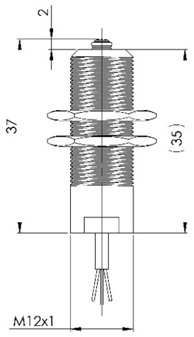

MP601L... : M8 IP67 MP651L... : M8 IP50			MP621L... : M12 IP67 MP671L... : M12 IP50
Code	Circuit	Contact distance	Over-travel min.	Fa max.
L00 L20	NC+NO	0.5 mm to close NO	1.5 mm after NO signal	1.2 (N) to open NC 3 (N) to close NO
L01 L21	NC+NO	1 mm to close NO	1 mm after NO signal	1.2 (N) to open NC 3 (N) to close NO
L02 L22	NC+NO	1.5 mm to close NO	0.5 mm after NO signal	1.2 (N) to open NC 3 (N) to close NO
L03 L23	NC only	0 mm to open NC	2 mm	1.2 (N) to open NC
L04 L24	NO only	0.5 mm to close NO	1.5 mm after NO signal	3 (N) to close NO
L05 L25	NO only	1 mm to close NO	1 mm after NO signal	3 (N) to close NO
L06 L26	NO only	1.5 mm to close NO	0.5 mm after NO signal	3 (N) to close NO

Type L1X : Ball
Sensor configuration

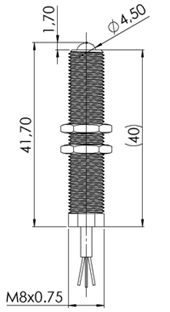

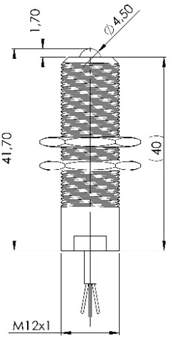

MP601L1... : M8 IP67 MP651L1... : M8 IP50			MP621L1... : M12 IP67 MP671L1... : M12 IP50
Code	Circuit	Contact distance	Over-travel min.	Fa max.
L10	NC+NO	0.5 mm to close NO	1.2 mm after NO signal	1.2 (N) to open NC 3 (N) to close NO
L11	NC+NO	1 mm to close NO	0.7 mm after NO signal	1.2 (N) to open NC 3 (N) to close NO
L12	NC+NO	1.5 mm to close NO	0.2 mm after NO signal	1.2 (N) to open NC 3 (N) to close NO
L13	NC only	0 mm to open NC	1.7 mm	1.2 (N) to open NC
L14	NO only	0.5 mm to close NO	1.2 mm after NO signal	3 (N) to close NO
L15	NO only	1 mm to close NO	0.7 mm after NO signal	3 (N) to close NO
L16	NO only	1.5 mm to close NO	0.2 mm after NO signal	3 (N) to close NO

	With Cable		With Circular connector 4 pins
COM NC NO	Brown / Brown Black / White Blue / Green		1 2 4
