MICROSWITCH SERIE MP500






A Subminiature microswitch of standardized small dimensions. The MP500 series stands out from other products on the market in terms of its mechanical service life and the choice of materials, wich enable it to resist temperatures up to 105 °C (221°F).



For applications with light forces of actuations as in pressostat, the microswitch can be delivered with a modified spring. The dimensional, electrical and IP protection parameters remain unchanged.



A variant without a protective membrane is available for use when the need for environmental protection (moisture and dust) is not necessary.



Descriptions



Approvals

EN 61058-1

UL 61058-1 File E314075

Housing Glass fiber reinforced
Plunger PES
Membrane Fluorsilicone elastomer
Mechanism Contacts Change-over, Snap action coil spring mechanism with stainless steel spring
Contact material Fine Silver, Gold contact upon request
Termination

Cable PVC -20°C to 105°C (-4°F to 221°F)

Solder terminal -40°C to 105°C (-40°F to 221°F)

PCB -40°C to 105°C (-40°F to 221°F)

Actuator Overall dimensions in stainless steel, flat lever , roller, simulated roller

Degree of protection

IP67

Class of protection

I          250V

II / III   24V

Pollution degree 3
Proof tracking index PTI 250V
Glow-wire temp. 850°C
Micro-disconnection μ
Contact-gap 0.40 mm
Dimensions

DIN 41 635, form B

20 x 16 x 6.5 mm (0.7874 x 0.6299 x 0.2559 in)



Power rating UL / EN 61058

(R: Resistive Load)

5RA 250VAC    25'000 cycles

2RA 250VAC    50'000 cycles

0.1RA 24VDC   50'000 cycles

Operating range force 0.5 to 2.5 N, depending actuator
Operating temperature range -40°C to 105°C (-40°F to 221°F)
Mechanical life 10 x 106





Casing





IP67

IP40


Actuating Force  Fa max  2.5 (N) standard MP500 MP550
Actuating Force  Fa max  1.2 (N) MP520 MP570






Actuators



L70/71 L80/81 L85/86






Characteristic

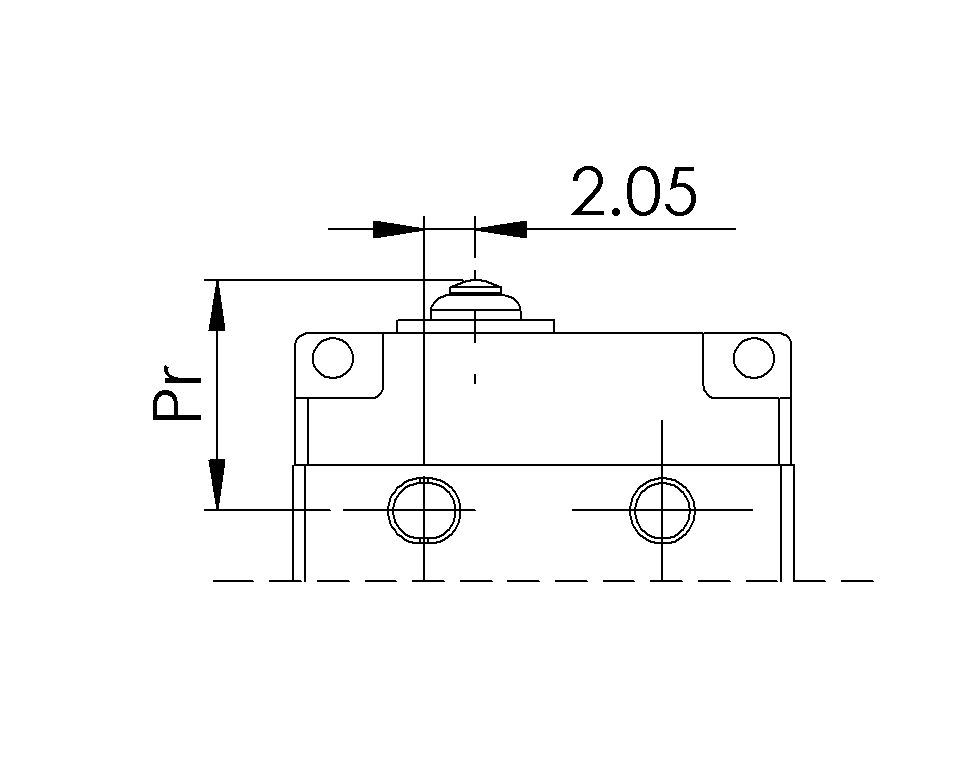

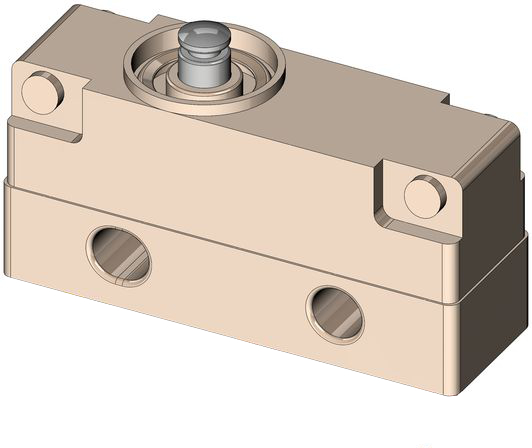

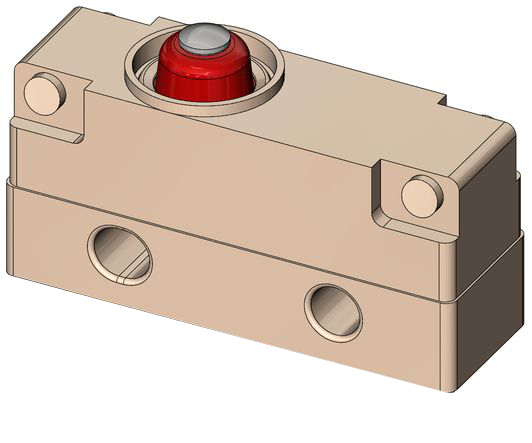

Type L00 : Pin plunger - without lever
  MP500 - MP550 MP520 - MP570

Actuating Force Fa max. (N)

Release Force Fr min (N)

Free Position Pr (mm)

Operating Position Pa (mm)

Over-travel sr min. (mm)

Differential movement sd max. (mm)

2.5

0.5

9.3 ± 0.2

9.0 ± 0.2

0.6

0.05

1.2

0.2

9.3 ± 0.2

9.0 ± 0.2

0.6

0.05

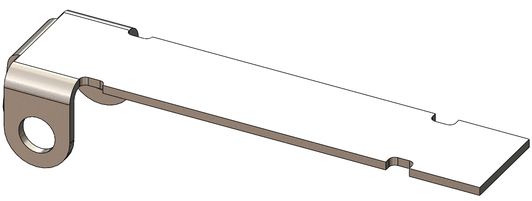

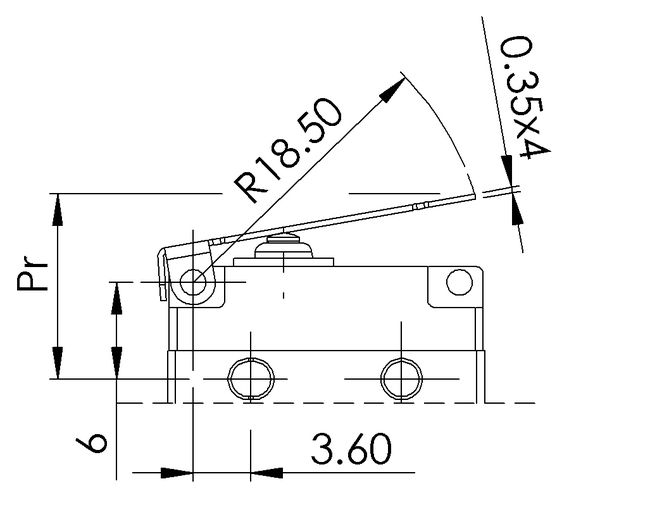

Type L70 : Flat lever - position A
  MP500 - MP550 MP520 - MP570

Actuating Force Fa max. (N)

Release Force Fr min (N)

Free Position Pr (mm)

Operating Position Pa (mm)

Over-travel sr min. (mm)

Differential movement sd max. (mm)

1.0

0.15

12.0 ± 0.4

10.6 ± 0.4

1.2

0.40

0.6

0.1

12.0 ± 0.4

10.6 ± 0.4

1.2

0.40

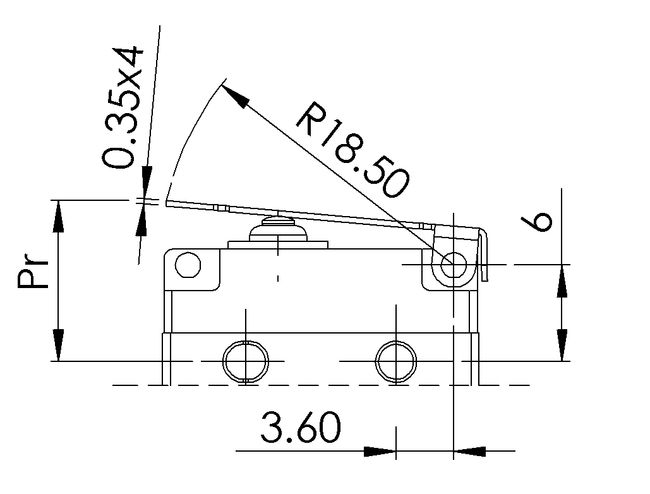

Type L71 : Flat lever - position B
  MP500 - MP550 MP520 - MP570

Actuating Force Fa max. (N)

Release Force Fr min (N)

Free Position Pr (mm)

Operating Position Pa (mm)

Over-travel sr min. (mm)

Differential movement sd max. (mm)

2.0

0.3

10.3 ± 0.4

9.7 ± 0.4

0.6

0.30

1.0

0.2

10.3 ± 0.4

9.7 ± 0.4

0.6

0.30

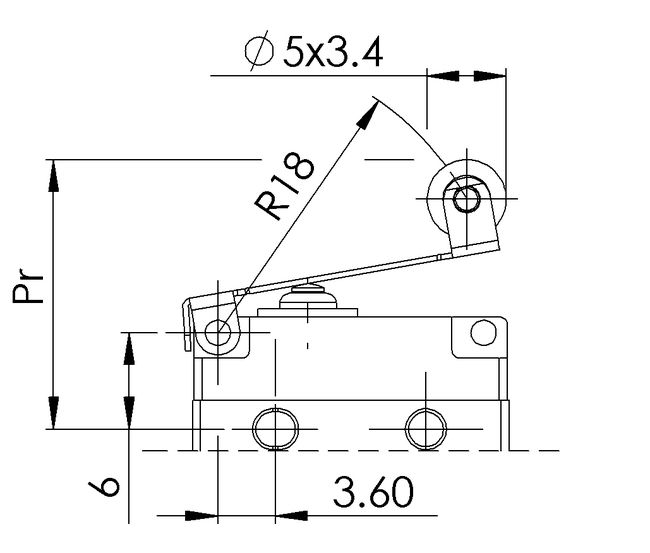

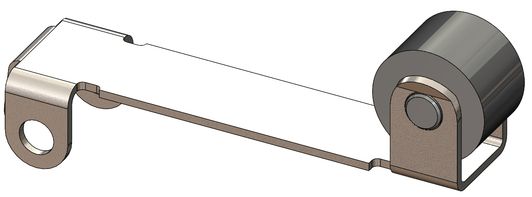

Type L80 : Roller - position A
  MP500 - MP550 MP520 - MP570

Actuating Force Fa max. (N)

Release Force Fr min (N)

Free Position Pr (mm)

Operating Position Pa (mm)

Over-travel sr min. (mm)

Differential movement sd max. (mm)

1.0

0.15

17.2 ± 0.4

16.0 ± 0.4

1.2

0.40

0.6

0.1

17.2 ± 0.4

16.0 ± 0.4

1.2

0.40

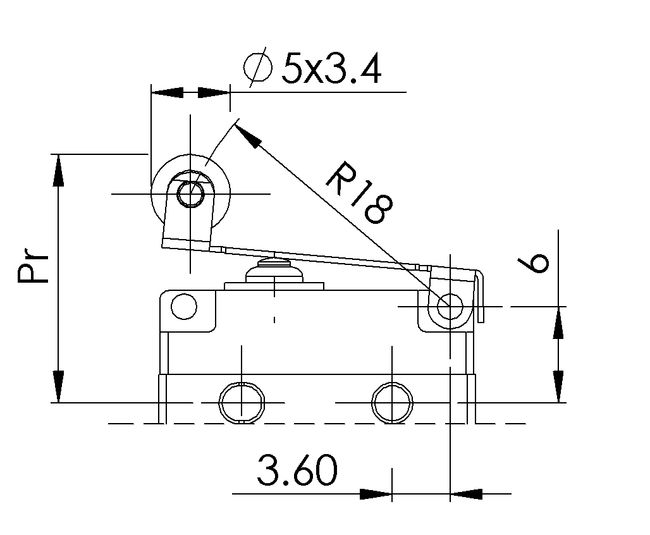

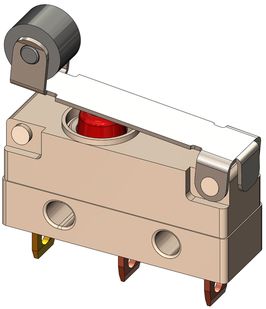

Type L81 : Roller - position B
  MP500 - MP550 MP520 - MP570

Actuating Force Fa max. (N)

Release Force Fr min (N)

Free Position Pr (mm)

Operating Position Pa (mm)

Over-travel sr min. (mm)

Differential movement sd max. (mm)

2.0

0.3

15.7 ± 0.4

15.1 ± 0.4

0.6

0.30

1.0

0.2

15.7 ± 0.4

15.1 ± 0.4

0.6

0.30

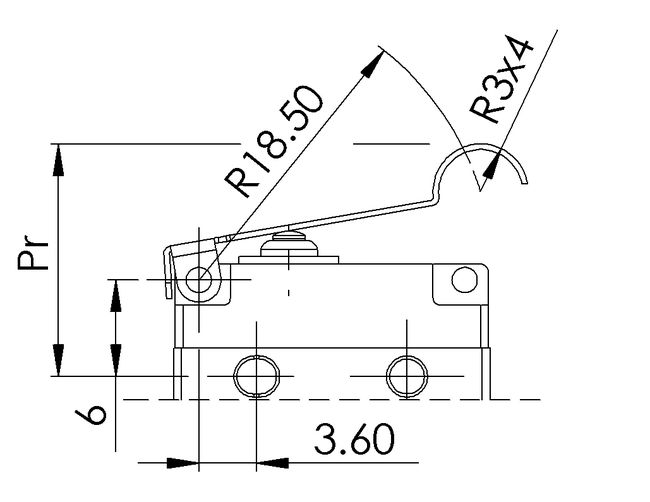

Type L85 : Simulated roller - position A
  MP500 - MP550 MP520 - MP570

Actuating Force Fa max. (N)

Release Force Fr min (N)

Free Position Pr (mm)

Operating Position Pa (mm)

Over-travel sr min. (mm)

Differential movement sd max. (mm)

1.0

0.15

14.7 ± 0.4

13.5 ± 0.4

1.2

0.40

0.5

0.1

14.7 ± 0.4

13.5 ± 0.4

1.2

0.40

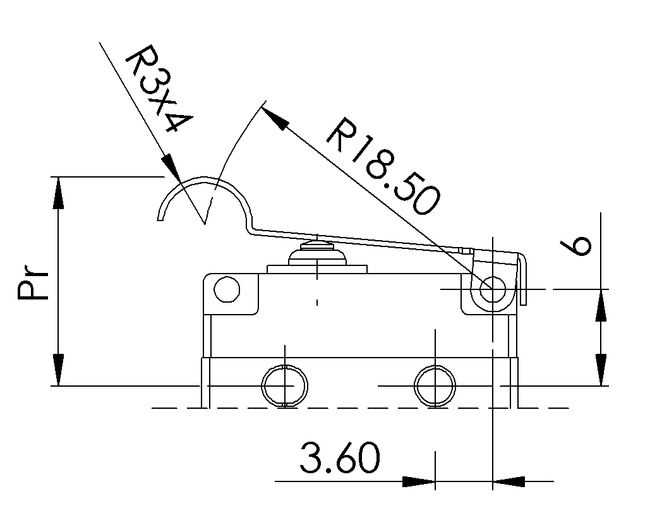

Type L86 : Simulated roller - position B
  MP500 - MP550 MP520 - MP570

Actuating Force Fa max. (N)

Release Force Fr min (N)

Free Position Pr (mm)

Operating Position Pa (mm)

Over-travel sr min. (mm)

Differential movement sd max. (mm)

2.0

0.3

13.2 ± 0.4

12.6 ± 0.4

0.6

0.30

0.6

0.2

13.2 ± 0.4

12.6 ± 0.4

0.6

0.30





Terminations

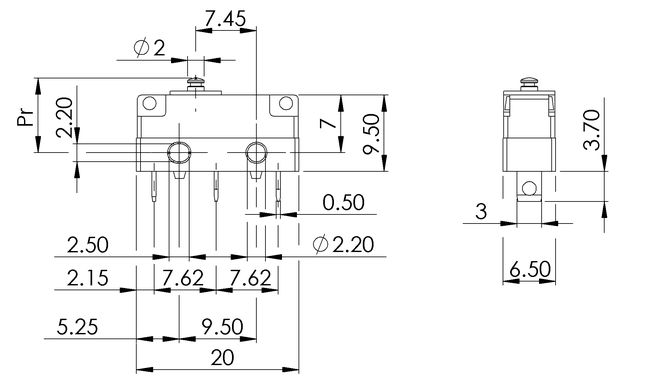

C000

Solder terminals

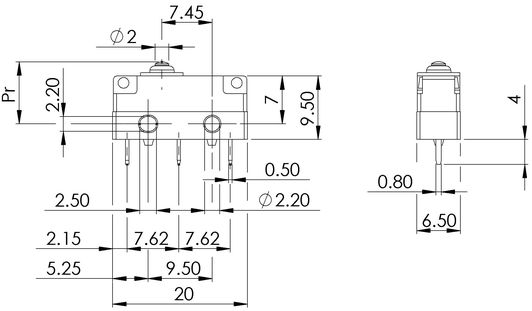

C001

PCB terminals

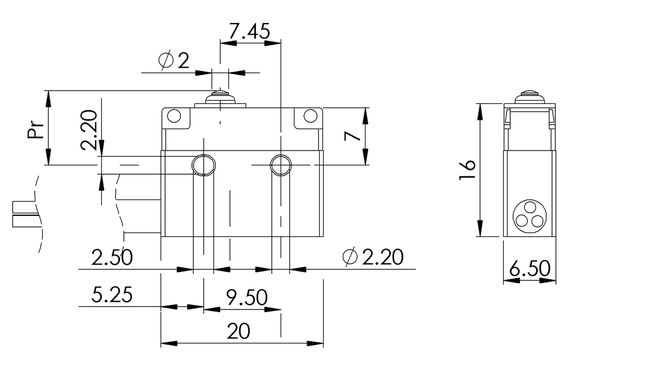

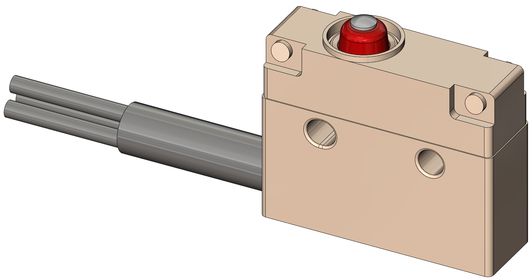

C100/C200

PVC cable overmould


Flexible conductors to be used.

With provisions for securing the conductor by mechanical means and providing circuit continuity by soldering.

Soldering by hand with a soldering iron.



Remark : Avoid overheating as this may damage the switch.




Recommendation: Avoid overheating as this may damage the switch. Temperature of soldering iron max. 340 ° C for 4 seconds, using a welding wire preferably without Chlore.










Standard wiring diagram





Solder terminals

PCB

C000

C001

PVC cable C10. / C20.

1 - Black

2 - Grey

4 - Blue





Ordering information



  MP5 0 0 - L70 - C100

Housing

0 : IP67 with membrane

2 : IP67 with membrane - Light Force

5 : IP40 without membrane

7 : IP40 without membrane  - Light Force



Contact material

0 : Silver contact

1 : Gold contact



Actuator

L00 : Basic switch - pin plunger

L70 : Flat lever -  A position

L71 : Flat lever  - B position

L80 : Roller - A position

L81 : Roller - B position

L85 : Simulated Roller - A position

L86 : Simulated Roller -  B position



Terminals

C000 : Solder

C001 : PCB

C100 : Cable PVC, 3x0.25 mm2 250VAC 2A 0.5 (m)

C101 : Cable PVC, 3x0.25 mm2 250VAC 2A 1 (m)

C102 : Cable PVC, 3x0.25 mm2 250VAC 2A 2 (m)

C200 : Cable PVC, 3x0.50 mm2 250VAC 5A 0.5 (m)

C201 : Cable PVC, 3x0.50 mm2 250VAC 5A 1 (m)

C202 : Cable PVC, 3x0.50 mm2 250VAC 5A 2 (m)
