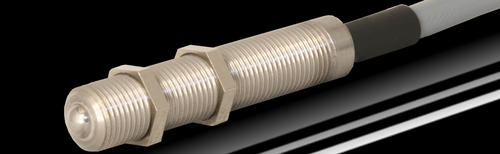

MP600 SERIES


The MP600 Series are M8 and M12 cylindrical mechanical sensors.

The long life sensing mechanism is designed to accurately detect two positions with a high degree of repeatability.



• 1 Device – 2 switching points
• Extended temperature range
M8 and M12 formats
• Easy mounting and adjustment








The MP600 series of mechanical position sensors detect one or two positions within a single, compact electromechanical component.



Two independent commutations can sense two previously defined positions to within a few microns of accuracy. The two positions can be set specifically for each application, between 0.5mm and 1.5mm and require no further calibration. Depending on cable selection, the operating temperature can go from -40°C up to 130°C. The cable can be supplied with a connector termination, typically M8 or M12.






Applications are in the automation, process control and OEM industries that require today two switches for position control. The MP600 series solves the time consuming adjustments required because of the hysteresis effect caused by the sensors or snap action switches currently used. Initially designed for compact detection of status and wear of industrial safety brakes, numerous other uses are envisaged, in particular in the field of industrial automation. They include accurate position referencing as well as upper and lower threshold detection in process control applications.


For ease of integration and enhanced functionality, custom housing shapes can be easily implemented.





Technical  Characteristics





    Options
Approvals

UL 61058-1


Housing Brass, nickel plated -  cylindrical format Stainless steel
Membrane HNBR elastomer
Mechanism Contacts Slow action
Contact material Gold plated
Degree of protection IP50 or IP67
Class of protection II
Micro-switch μ

Actuator Polymer Pin

Stainless steel Pin

other metallic material
Ball
Telescopic
Contact distance NC-NO 0.5 to 1.5mm custom distance
Circuit NC+NO, NC or NO
Cable length 0.5m, 1m, 2m and 5m custom length
Connector M8 - M12 available, -25°C to 85°C, PUR
Cable material

Cable and wire leads:  Standard 0.14 mm2 / 26 AWG

PVC -20°C to 105°C

PUR -40°C to 90°C

SI -40°C to 130°C

other material

Power rating 24VDC / 5 to 100 mA
Repeatability ± 5 µm
Hysteresis < 7 µm

Operating temperature range

UL 61058 -40°C to +130°C depending on cable and connector

-55°C
Life span

10 Mio cycles


B10d > 50 Mio, 24VDC 10mA
Standards

UL61058     50'000 cycles









Description



The sensors are built with a NC and a NO contact. There is no pre-travel of the pin plunger to open the NC contact.
The NO closes after a customized length of travel between 0.5 mm to 1.5 mm.



 MP600 Circuit





Configurations Housing

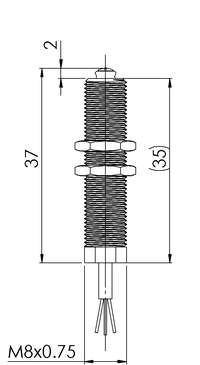

M8

Pin polymer - Pin metallic

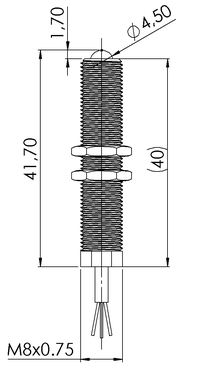

M8 with Ball

M8 with Telescopic MP600 TEL MP600 TEL Cote

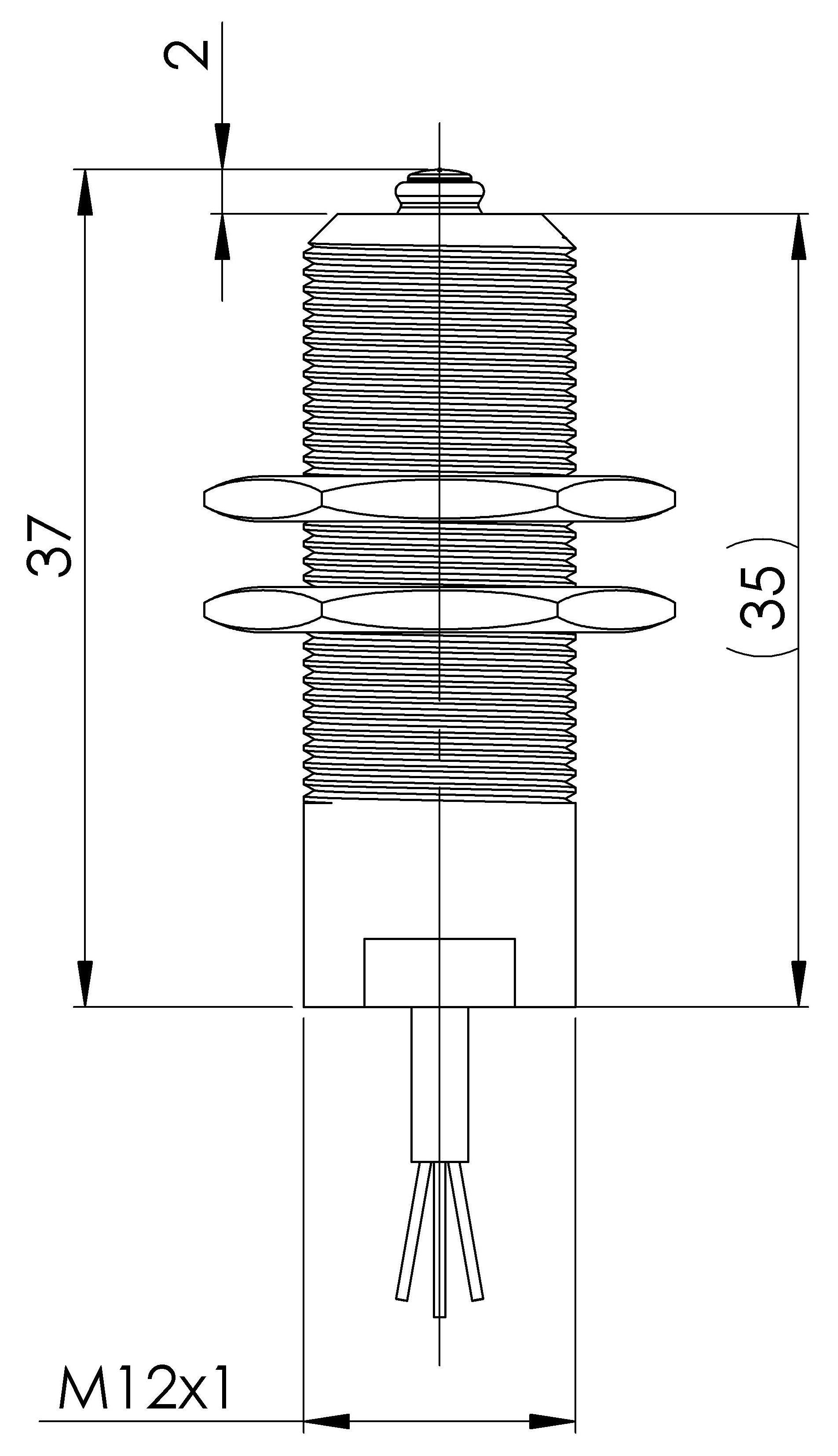

M12

Pin polymer - Pin metallic

MP600 M12 pin

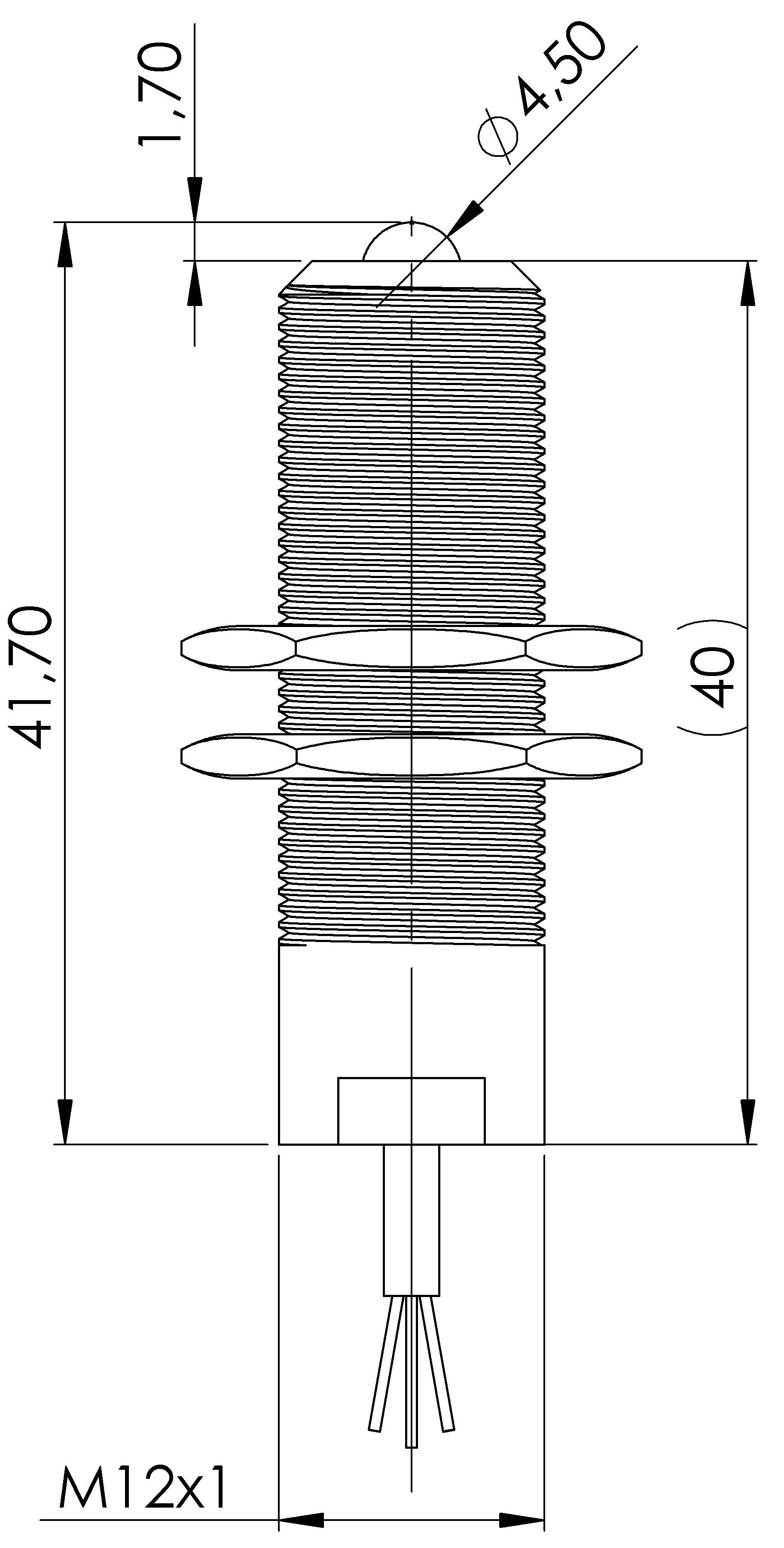

M12 with Ball

MP600 M12 bille





Configurations Actuator - Circuit



Type

L0X : Pin polymer

L2X : Pin metallic


pin   Contact distance (mm) - Circuit
  Pre-travel (mm)  Over-travel min. (mm)  Fa max. (N)


L00

L20

 0.5 mm NC+NO

 0 mm to open NC

0.5 mm to close NO

1.5 mm after NO signal

1.2 (N) to open NC

3 (N) to close NO



L01

L21

 1 mm NC+NO

0 mm to open NC

1 mm to close NO

1 mm after NO signal

1.2 (N) to open NC

3 (N) to close NO



L02

L22

 1.5 mm NC+NO

0 mm to open NC

1.5 mm to close NO

0.5 mm after NO signal

1.2 (N) to open NC

3 (N) to close NO



L03

L23

 NC only

0 mm to open NC

 2 mm

1.2 (N) to open NC



L04

L24

 0.5 mm NO only

0.5 mm to close NO

1.5 mm after NO signal

3 (N) to close NO



L05

L25

 1 mm NO only

1 mm to close NO

1 mm after NO signal

3 (N) to close NO



L06

L26

 1.5 mm NO only

1.5 mm to close NO

0.5 mm after NO signal

3 (N) to close NO







Type

L1X  : Ball


bille1 Contact distance (mm) - Circuit
  Pre-travel (mm)  Over-travel min. (mm)  Fa max. (N)

L10  0.5 mm NC+NO

 0 mm to open NC

0.5 mm to close NO

1.2 mm after NO signal

1.2 (N) to open NC

3 (N) to close NO


L11  1 mm NC+NO

0 mm to open NC

1 mm to close NO

0.7 mm after NO signal

1.2 (N) to open NC

3 (N) to close NO


L12  1.5 mm NC+NO

0 mm to open NC

1.5 mm to close NO

0.2 mm after NO signal

1.2 (N) to open NC

3 (N) to close NO


L13  NC only

0 mm to open NC

 1.7 mm

1.2 (N) to open NC


L14  0.5 mm NO only

0.5 mm to close NO

1.2 mm after NO signal

3 (N) to close NO


L15  1 mm NO only

1 mm to close NO

0.7 mm after NO signal

3 (N) to close NO


L16  1.5 mm NO only

1.5 mm to close NO

0.2 mm after NO signal

3 (N) to close NO







Type

L5X : Telescopic


TEL Contact distance (mm) - Circuit
  Pre-travel (mm)  Over-travel min. (mm)  Fa max. (N)

L50  0.5 mm NC+NO

0 mm to open NC

0.5 mm to close NO

6 mm after NO signal

1.2 (N) to open NC

3 (N) to close NO


L51  1 mm NC+NO

0 mm to open NC

1 mm to close NO

5.5 mm after NO signal

1.2 (N) to open NC

3 (N) to close NO


L52  1.5 mm NC+NO

0 mm to open NC

1.5 mm to close NO

5 mm after NO signal

1.2 (N) to open NC

3 (N) to close NO


L53  NC only

0 mm to open NC

 6.5 mm

1.2 (N) to open NC


L54  0.5 mm NO only

0.5 mm to close NO

6 mm after NO signal

3 (N) to close NO


L55  1 mm NO only

1 mm to close NO

5.5 mm after NO signal

3 (N) to close NO


L56  1.5 mm NO only

1.5 mm to close NO

5 mm after NO signal

3 (N) to close NO







Termination





  With Cable With Circular connector 4 pins

COM

NC

NO

Brown / Brown

Black / White

Blue / Green

1

2

4

M12 Circuit male









Standard Configuration - Ordering information



  MP6 0 1 - L 0 0 -C 1 0
PVC __

Housing

0 : M8 Metal IP67

2 : M12 Metal IP67

5 : M8 Metal IP50

7 : M12 Metal IP50



Contact

1 : Gold plated contact




Actuator

0 : Pin polymer

1 : Ball

2 : Pin metallic

5 : Telescopic



Contact Distance - Circuit

0 : 0.5mm NC+NO

1 : 1.0mm NC+NO

2 : 1.5mm NC+NO

3 : NC only

4 : NO only 0.5mm

5 : NO only 1.0mm

6 : NO only 1.5mm




Cable length

0 : 0.5m

1 : 1m

2 : 2m

5 : 5m



Connector

0 : Without

1 : Circular M12 - 4 pin PUR Cable, not available with telescopic Actuator

2 : Circular M8 - 4 pin PUR Cable, not available with telescopic Actuator











Termination material

PVC : Polyvinyl Chloride

PUR : Polyurethane

SI : Silicone, not available with circular connector



Termination outlet

FL : Free wires
